Starting off the new year with a bang, literally! Last job in the garage for 2025 was getting ready to welcome in 2026 with a load of fireworks. I had one board of single shots, and 3 boards with cakes which put off a great show!
All the fireworks were glued in place to ensure they all went off safely.
For Christmas Sandy gave me an 8kw Vevor Diesel Heater! This unit can be used inside or outside provided you properly route the exhaust outside and comes with a wireless remote and Bluetooth connectivity to control the unit.
I took the unit apart for inspection based on some videos I watched and found everything secure and in good order.
The only modifications I made were splitting and installing some oversize plastic tubing to protect the fuel line where it passes through the metal frame in two spots.
Now it was time for a test fire. I extended the power cord and ran the unit off the battery in Project 6x6 having just fully charged it.
I ran the exhaust out under the overhead door and later added the 3" heater duct to direct warm air back into the garage. The unit worked extremely well and was very quiet, this unit must have the newer style quiet fuel pump as it's much quieter than all the rest I have seen.
The Bluetooth app is fantastic, it displays temperature of the machine, room temperature, and battery voltage. It also lets you adjust temperature and start/stop the unit. With this fantastic new piece of kit I'm really looking forward to some ice fishing adventures in my Woods Arctic-4 ice fishing shelter later this year!

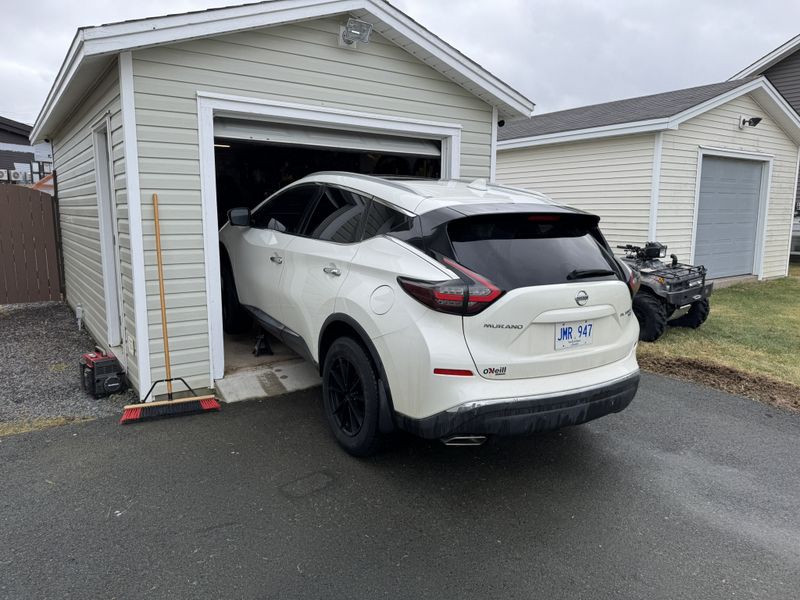

On January 18th I hauled our 2020 Murano into the garage for some routine maintenance and a minor repair.

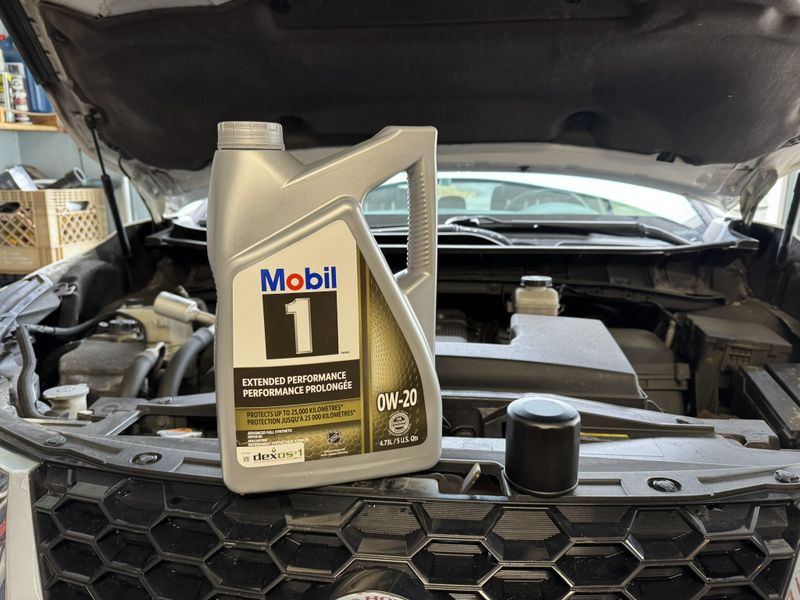

First up was and engine oil and filter change, this was my first time doing it myself on the Murano as we had five years of included dealership oil changes when we purchased the vehicle.

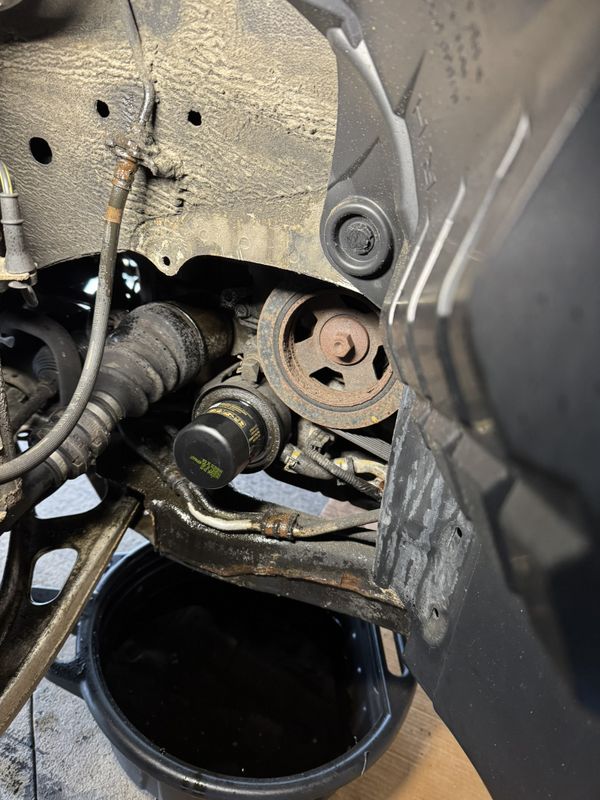

The oil filter was accessed through the passenger side wheel well, having only to turn the wheels all the way to the right and remove a small plastic access cover.

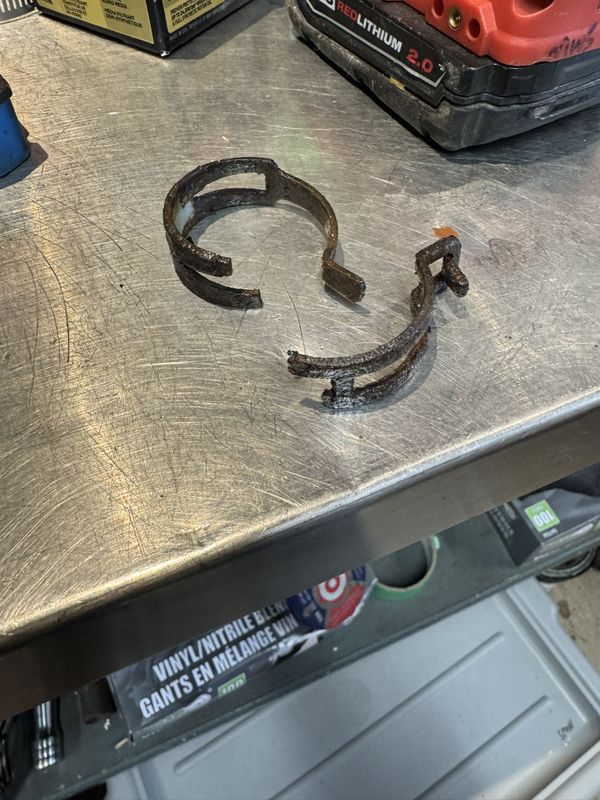

We've had an engine coolant drip for a couple months now which is slowly getting more pronounced. With the vehicle on jack stands and the skid plate removed for service the culprit was easily identified. The lower radiator hose clamp rusted out and no longer had any clamping force, a problem I experienced and repaired on my Silverado. I removed the clamp which immediately split in two pieces and replaced it with a traditional stainless steel hose clamp.
Now I fully understand the use of these spring clamps on modern vehicles with plastic radiators as they can expand and contract with heating/cooling. However in our climate they are garbage as they always rust out. The stainless traditional clamps have held up perfectly fine for over 10 years on my truck so it should be a great repair here as well.

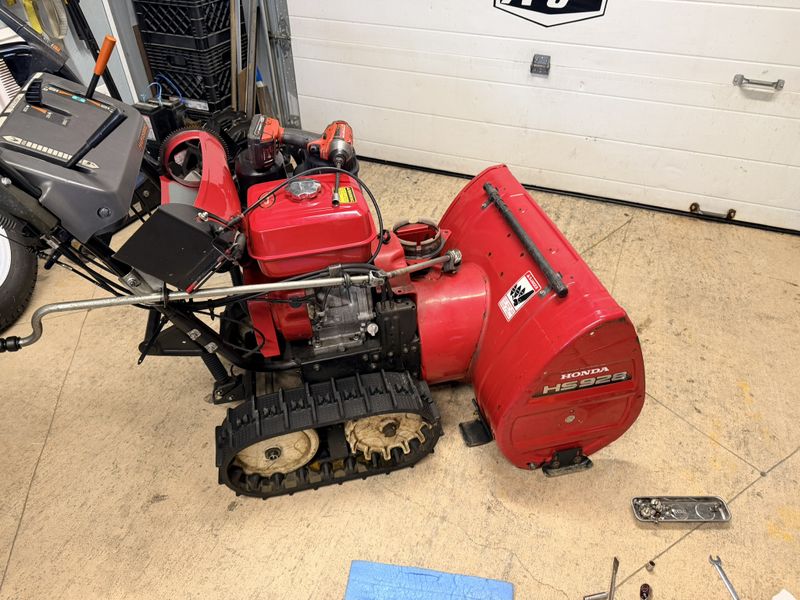

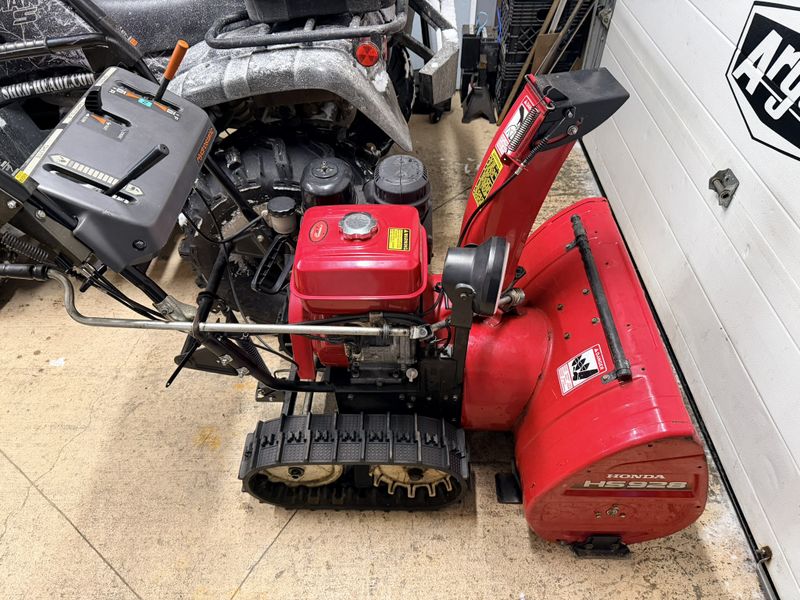

January 27th: With another snow storm on the way it was time to show my trusty now 20 year old Honda 9/28 Snowblower some love.
During the last driveway cleanup which was incredibly wet & heavy the blower struggled and actually let some smoke out of the auger belt! The belts were last replaced twelve years ago so I am not at all disappointed with that service!

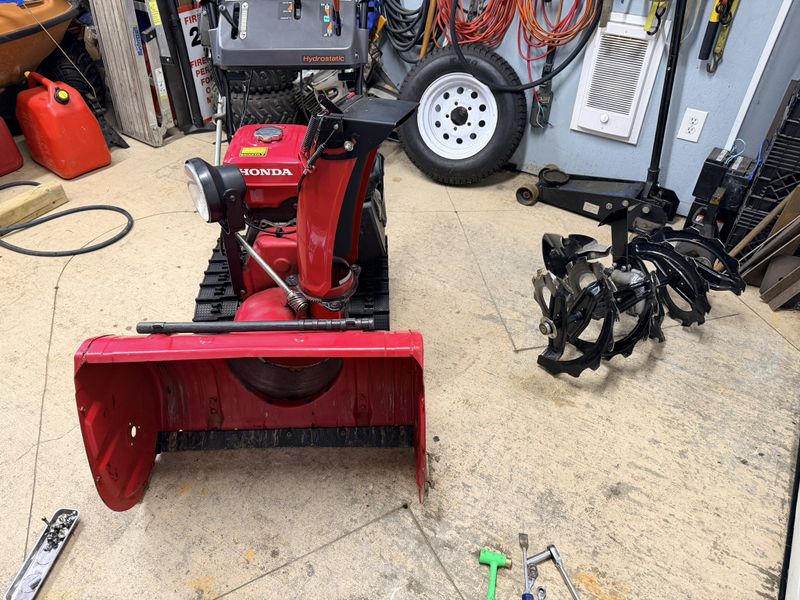

Splitting the machine is a matter of removing the chute, light and belt cover then removing ten 12mm bolts that attach the bucket to the main frame. Most can be removed with a ratchet but two on each side need a standard wrench, a ratcheting wrench makes quicker work of removing them. As I will be replacing the impeller bearing at this time, the augers were removed from the bucket as well.

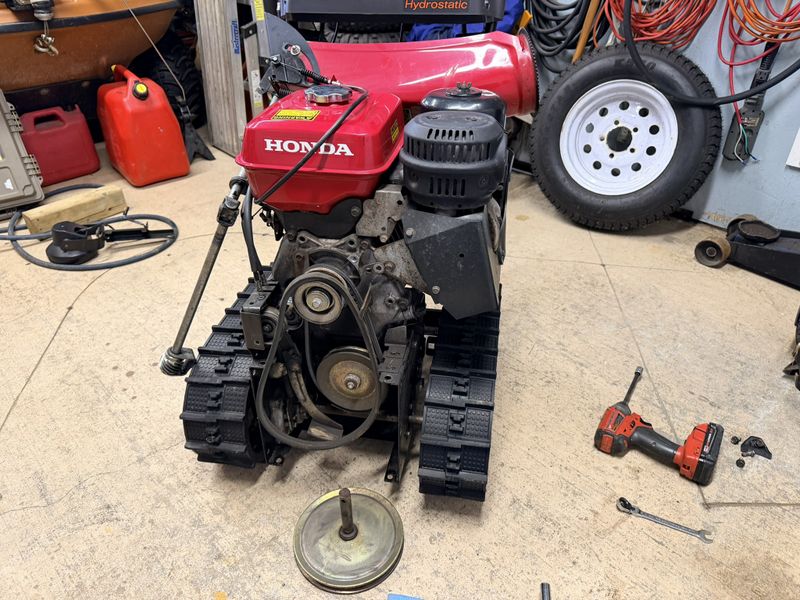

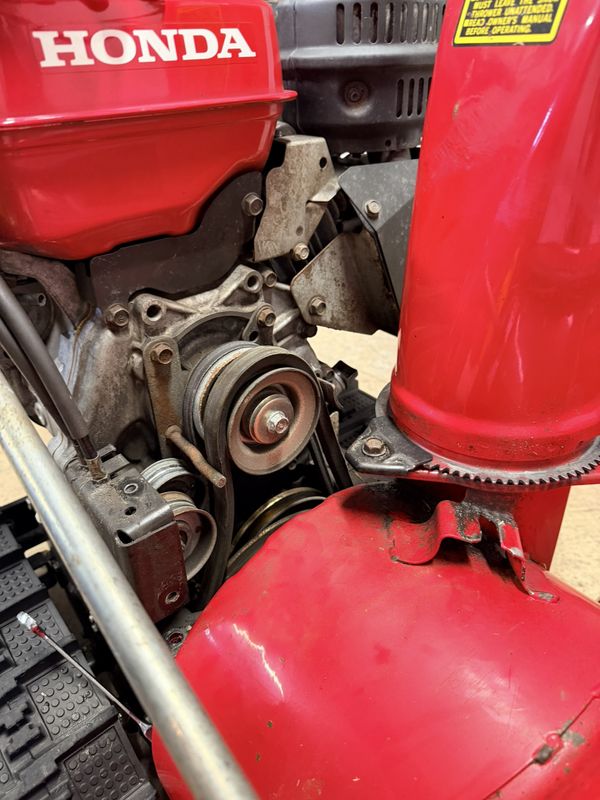

Auger belt well worn and stretched out. If I never had replacement parts I could possibly adjust the tensioner but at twelve years old this machine is getting a fresh set.

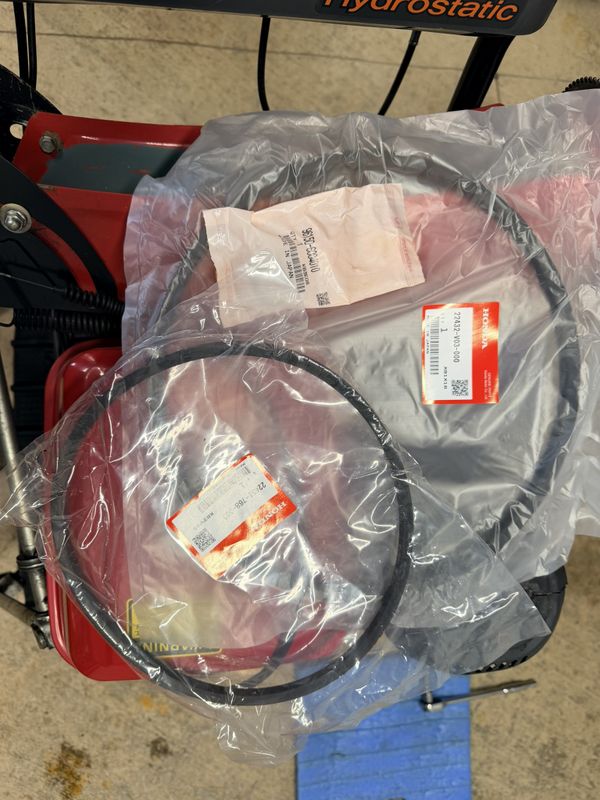

I've had these replacement parts in stock for a couple years now as I knew I would need them soon, today was that day.

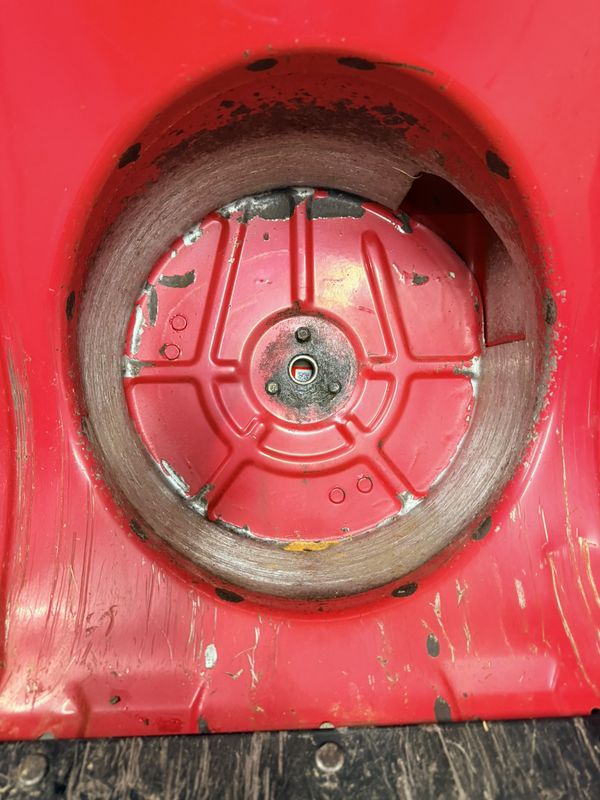

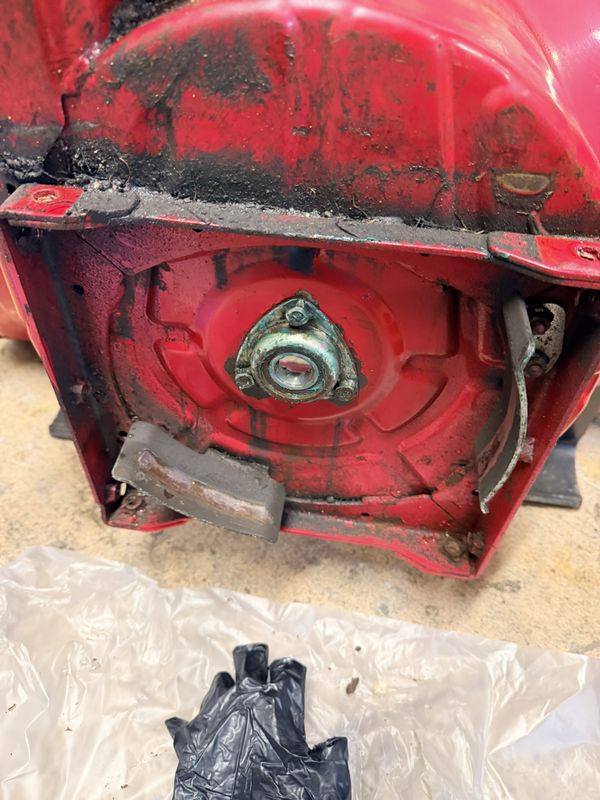

These three 10mm bolts hold the cup for the impeller bearing. Mine was not noticeably noisy but when I checked it was rough. It's always a good call to replace this bearing while the machine is apart for belts.
For the last 10 years I've been packing these brand new bearings with my own high quality Lucas grease then reinstalling the seals. This procedure greatly increases the life of this fast spinning, hard to get to bearing. Grease on the outside of the bearing retainer is solely for rust prevention.

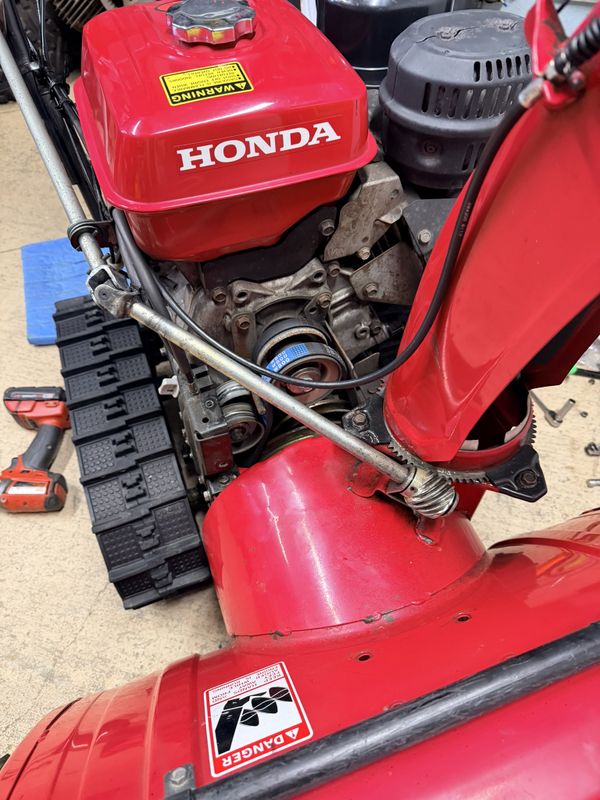

Back together and ready for the next storm! This job took me about two hours taking my time and putting tools away.

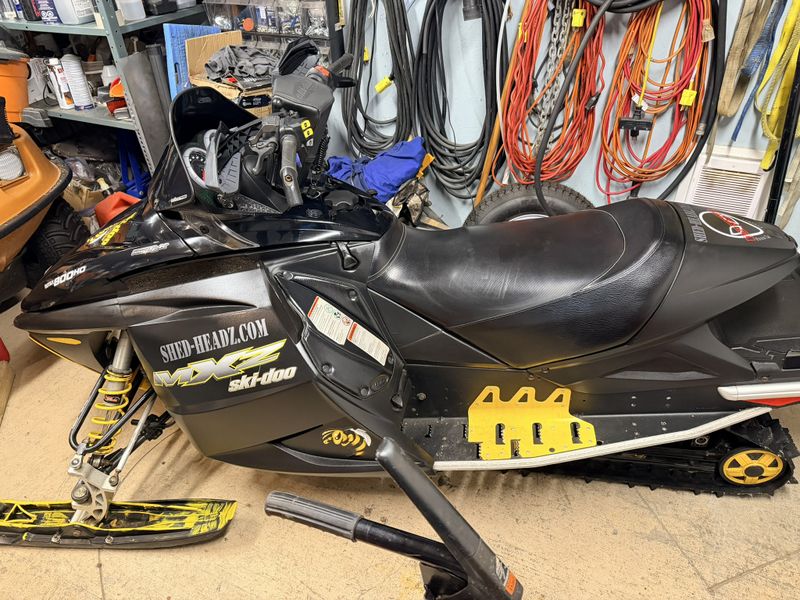

February 5th: Project Powertek REV is back! After a two year hiatus my beautiful 2006 MXZ 800HO is back in the garage and ready to ride. Be sure to check out the Crew Adventures page for our next outing!

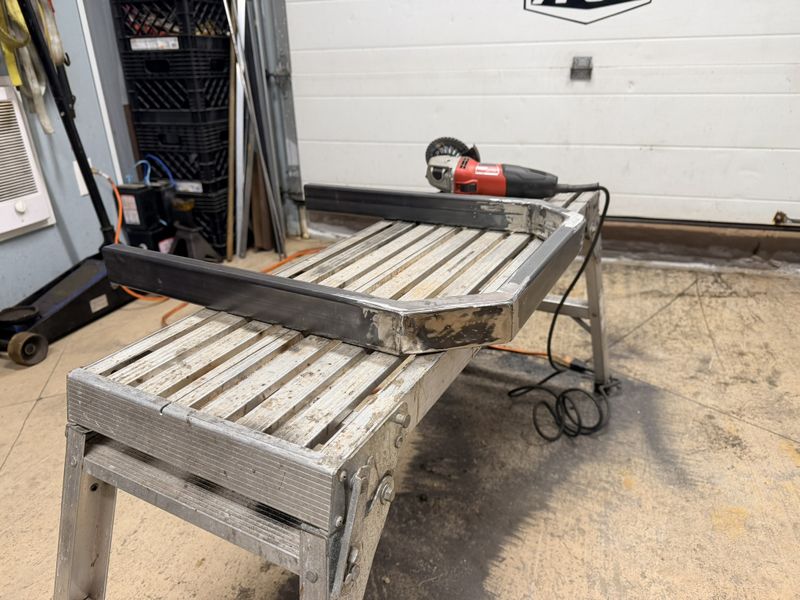

Sneak peak of a project I'm currently working on a custom tow bumper for Project REV. This will replace the stock bumper with one heavy duty enough to tow some ice fishing gear to places too far to tow Project 6x6, my 1989 Argo on an uncovered trailer. For all the details check out the build: Tow bumper for Project REV.

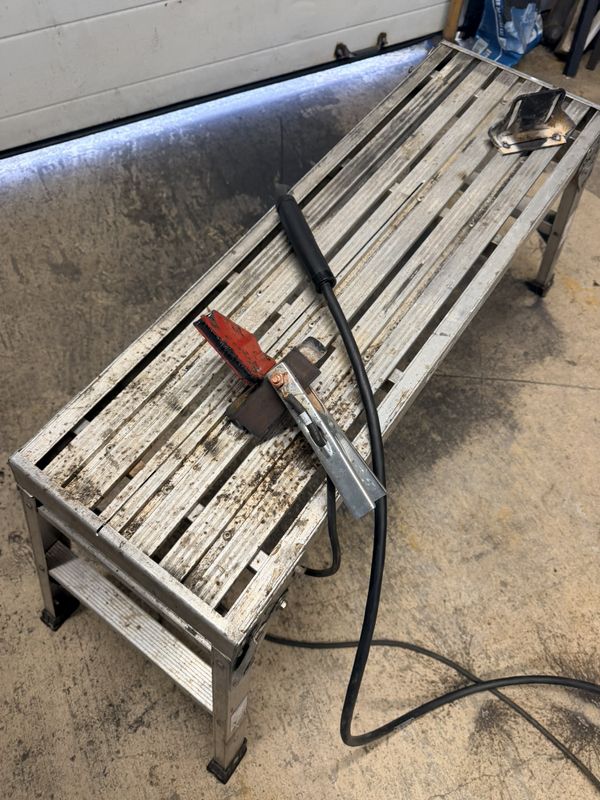

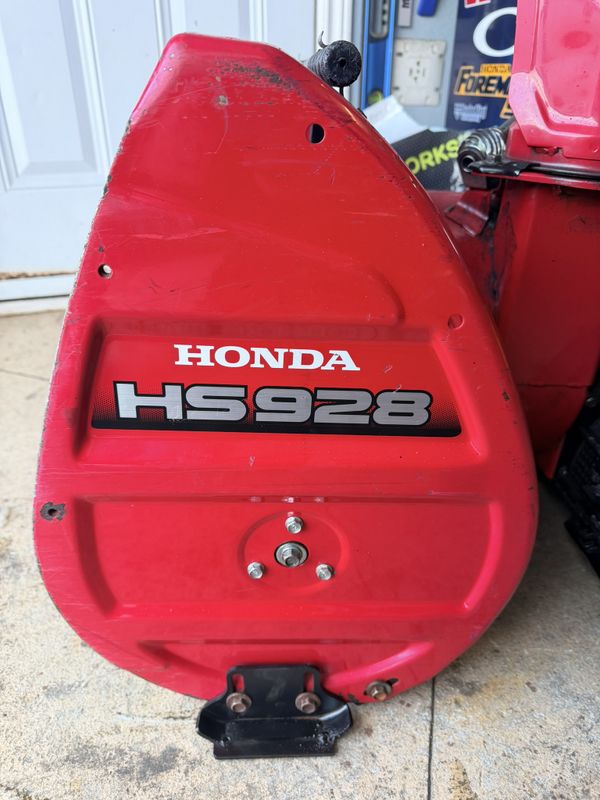

While I had the welder out finishing up work on my snowmobile tow bumper project I quickly fixed up the side bucket skids on my Honda Snowblower. These wear our regularly and if they aren't too tore up I often weld another piece of steel to the foot.

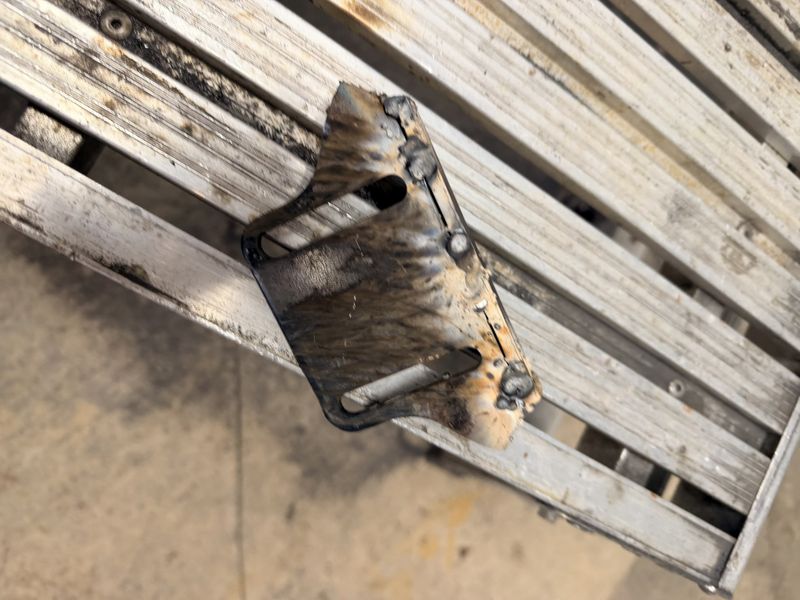

I cut off a length of slightly wider 3/16" steel plate and attached it to the old skid with my MIG Welder. I tacked it on the sides, made a full pass on the leading and trailing edges which were shaped with my grinder before paint.
All fixed up and ready for the next storm!

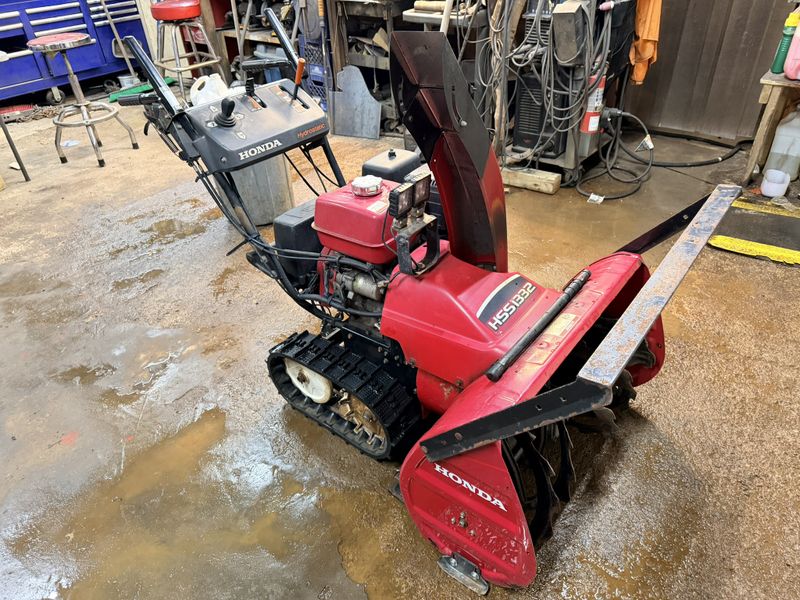

On Monday right after our latest 56cm dump of snow I received a phone call from buddy Rob who's Honda 13/32 Snowblower suddenly stopped moving. I last repaired this problem on this machine back in 2020, Rob logs a huge amount of hours on his machine and had the crawler drive gearbox worn out again! Rob did a parts run while I loaded up some specialty tools and headed over to his place. Link: How to rebuild a Honda Snowblower final drive gearbox

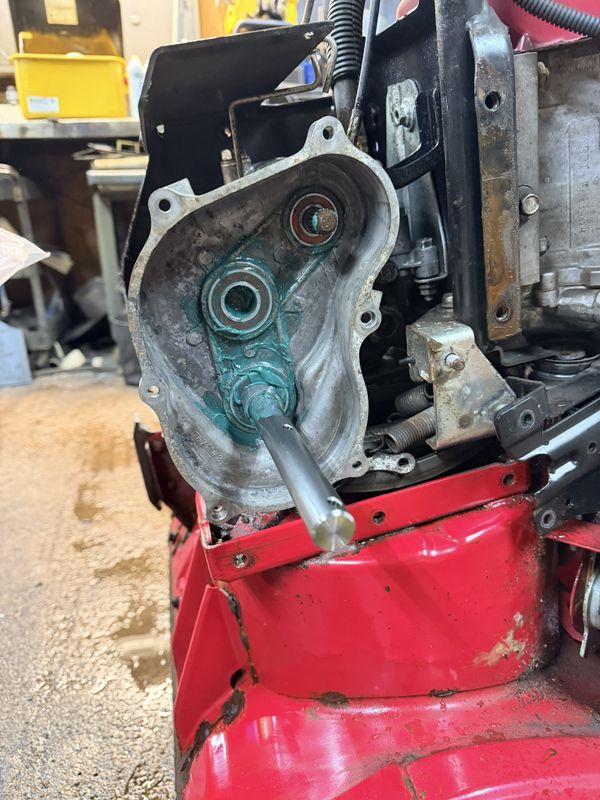

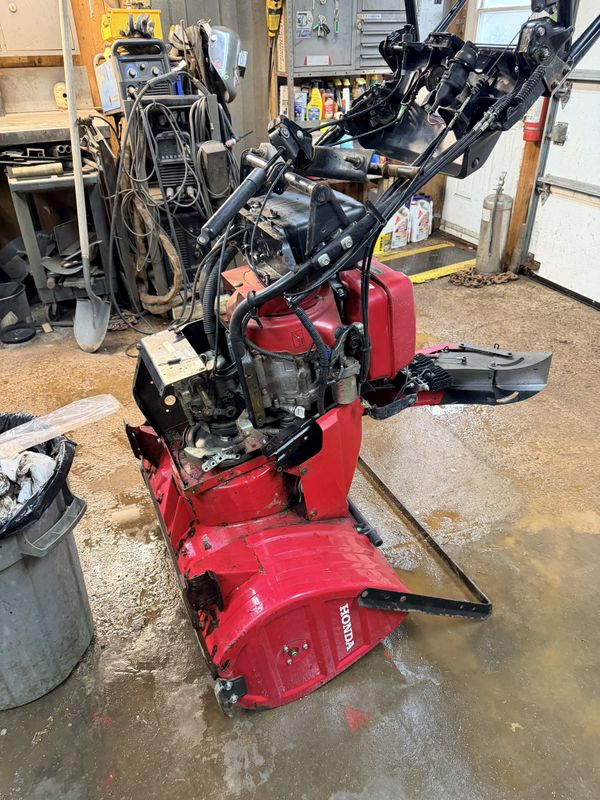

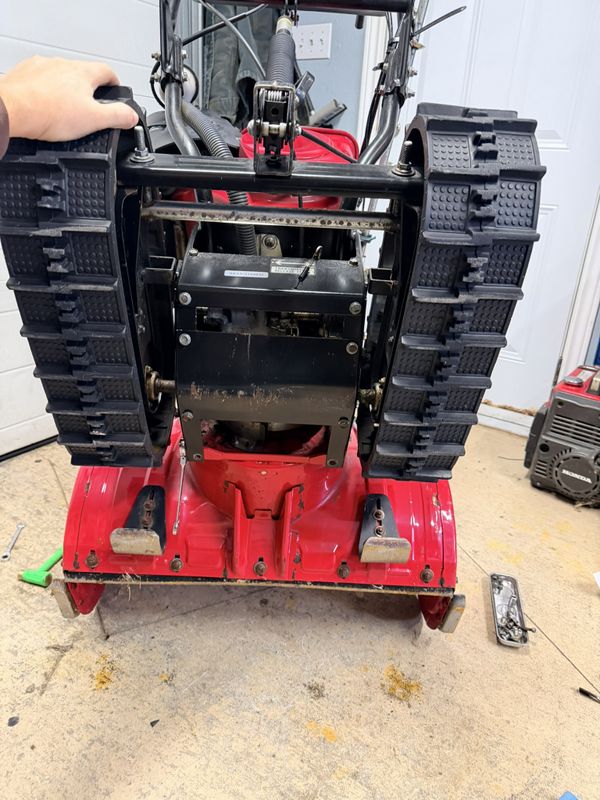

While Rob continued snow clearing I got to work disassembling the machine, finding the failure, then cleaning up everything that's to be reused.
There were two main failures, the centre bearing was completely smoked and was found in multiple pieces, additionally the pin on the driveshaft which engages with the lower gear completely snapped off.
Rob picked up the full rebuild kit from out local dealer Honda One which includes all the parts that commonly fail. It's always best to install the entire kit.
This centre gear is a perfect example, the old one is working but well worn. Reusing these parts will leave you in the same predicament sooner rather than later.

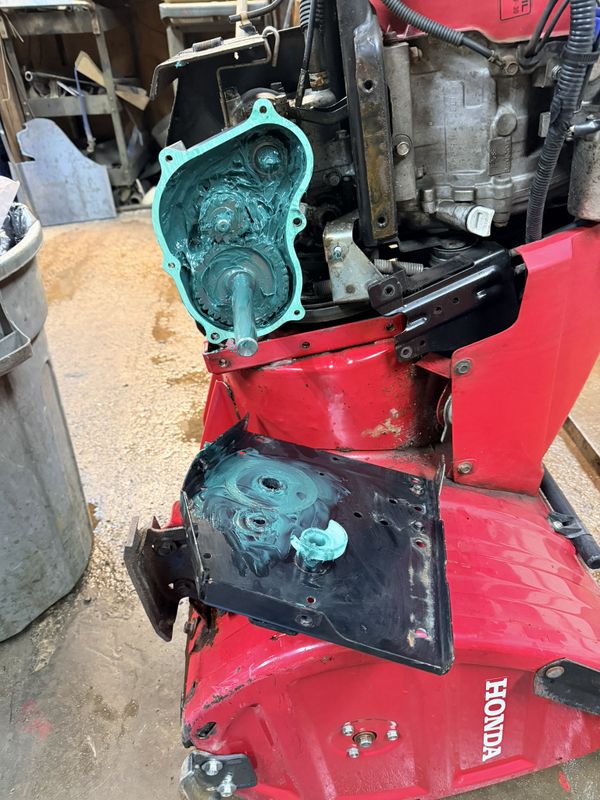

Lots of grease before putting the cover back on.
All fixed, tested and ready for the next storm!

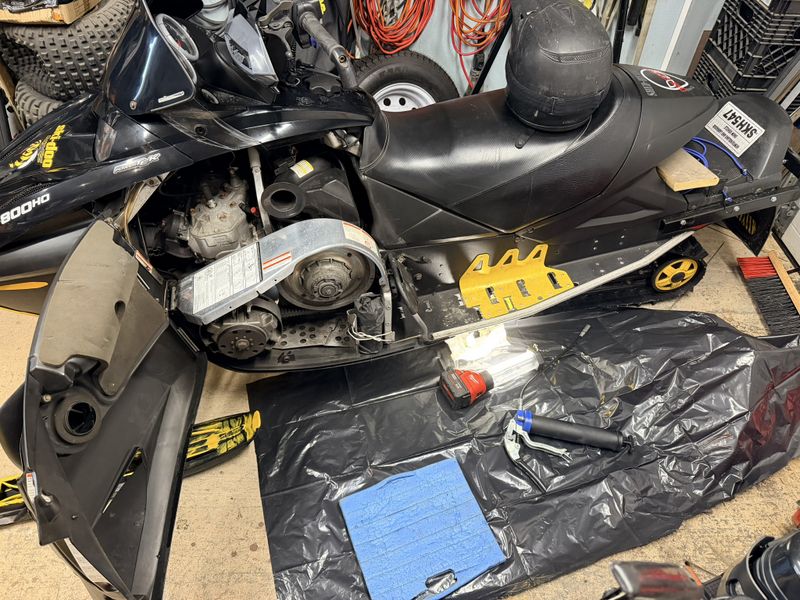

Nothing too crazy from Area51 this week, just a normal mid season maintenance on Project Powertek REV which included greasing the suspension and drive shaft bearing, checking fluids, and looking over the sled for damage and worn parts.

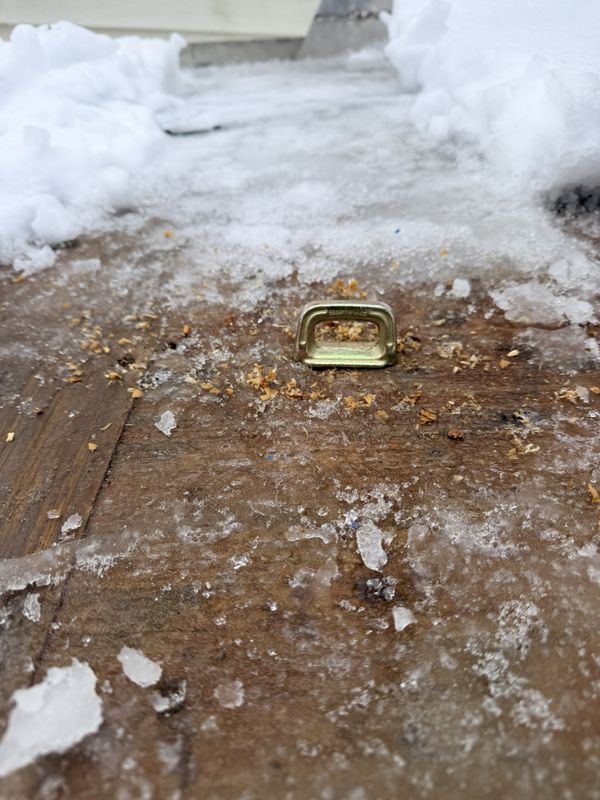

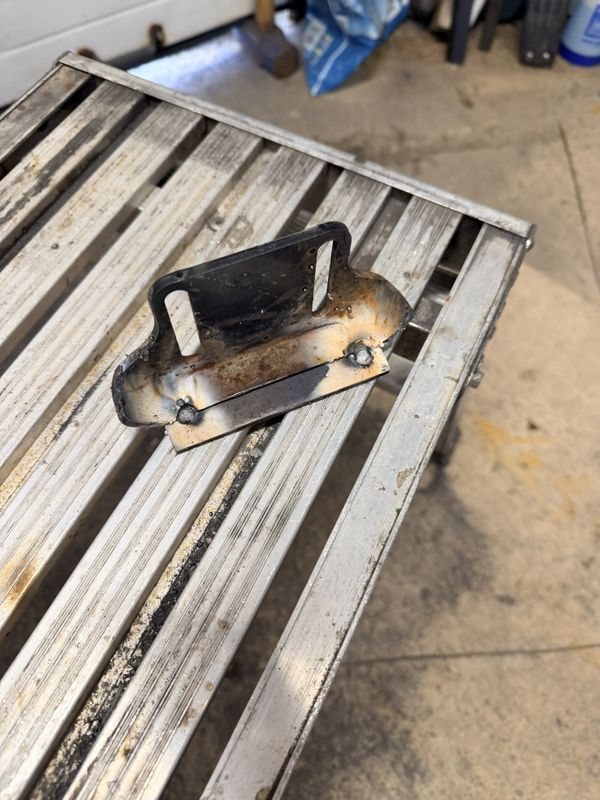

One thing I was real happy to complete this week was installing the hook in my trailer deck for my snowmobile Superclamp. These clamps are super easy and quick to strap down the machine, I've missed using mine since I re-decked the trailer a couple years ago!
If you missed the last update, scroll up!

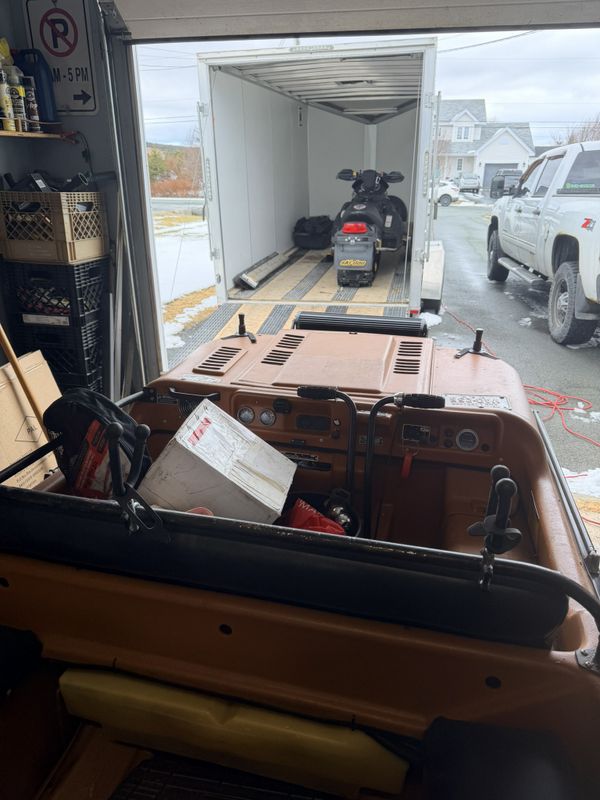

Near the end of March it was time to clear out the shed a little. I recently towed home the enclosed trailer I share with Dad which meant the Skidoo could be relocated there. This way it frees up space in the garage and its loaded and ready to go for a ride if conditions improve.
Today I got a lot of tools/supplies put away and pulled the Argo, ahead for some spring maintenance. It's been sitting awhile and when it does the carburetor varnishes up causing running/idling issues. To find out more be sure to check out the Project 6x6 2026 page!
